For manufacturers working with hard materials like glass and ceramics, achieving both high precision and throughput remains a constant challenge. One often overlooked yet highly effective solution lies in the use of ultra-thin diamond grinding bits — tools engineered not just for cutting, but for optimizing the entire machining process.

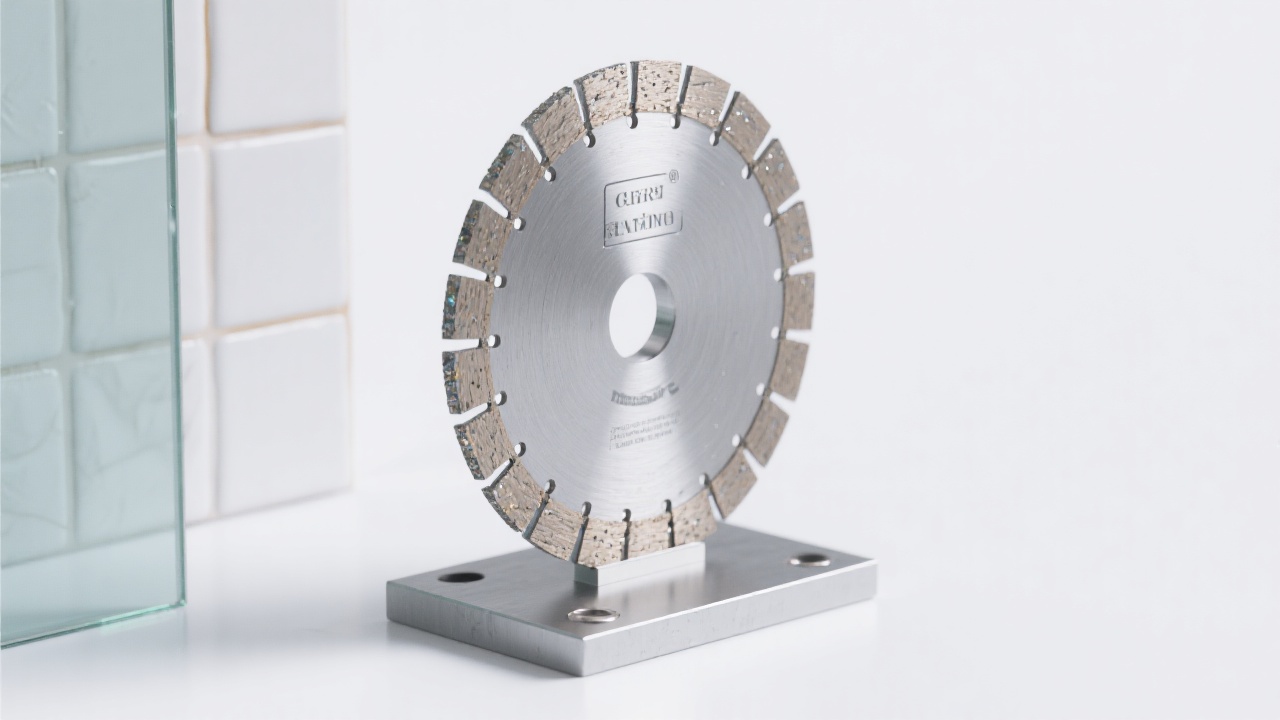

These grinding bits are typically manufactured using a brazing process that bonds synthetic diamond segments to a steel core. The key innovation? A blade thickness as low as 0.3 mm — significantly thinner than traditional diamond wheels (which average 1.5–2.0 mm). This reduction in width minimizes kerf loss (the material removed during cutting) by up to 60%, directly improving yield rates in high-value applications such as smartphone glass substrates or ceramic insulators.
In controlled tests conducted at a leading optics manufacturer in Germany, these ultra-thin bits achieved an average surface finish of Ra 0.2 μm when cutting borosilicate glass — a 40% improvement over standard tools. Moreover, tool life increased from 80 to 150 parts per sharpening cycle due to reduced heat generation and wear resistance from the fine-grain diamond matrix.
| Parameter | Standard Bit | Ultra-Thin Diamond Bit |
|---|---|---|
| Kerf Width | 1.8 mm | 0.3 mm |
| Surface Finish (Ra) | 0.6 μm | 0.2 μm |
| Tool Life (Parts) | 80 | 150 |
The reduced thickness also enhances operational flexibility — especially in tight spaces or complex contours where thicker tools would cause interference. In one case study from a Japanese electronics OEM, engineers reported a 30% decrease in setup time when switching to ultra-thin bits for edge finishing on ceramic PCBs. Additionally, lower vibration levels and improved chip evacuation contribute to safer handling and fewer operator errors.
When implemented correctly — with proper coolant flow, spindle speed matching (typically 3,000–5,000 RPM), and regular inspection intervals — these tools can deliver consistent performance across thousands of cycles without significant degradation. They’re not just about raw power; they represent a smarter approach to resource utilization, waste reduction, and quality consistency.
If your production line is still relying on older-generation grinding solutions, now may be the ideal time to evaluate how ultra-thin diamond technology could transform your output. With proven results in real-world industrial settings, this isn’t just theory — it’s measurable ROI.
Ready to elevate your precision machining capabilities?
